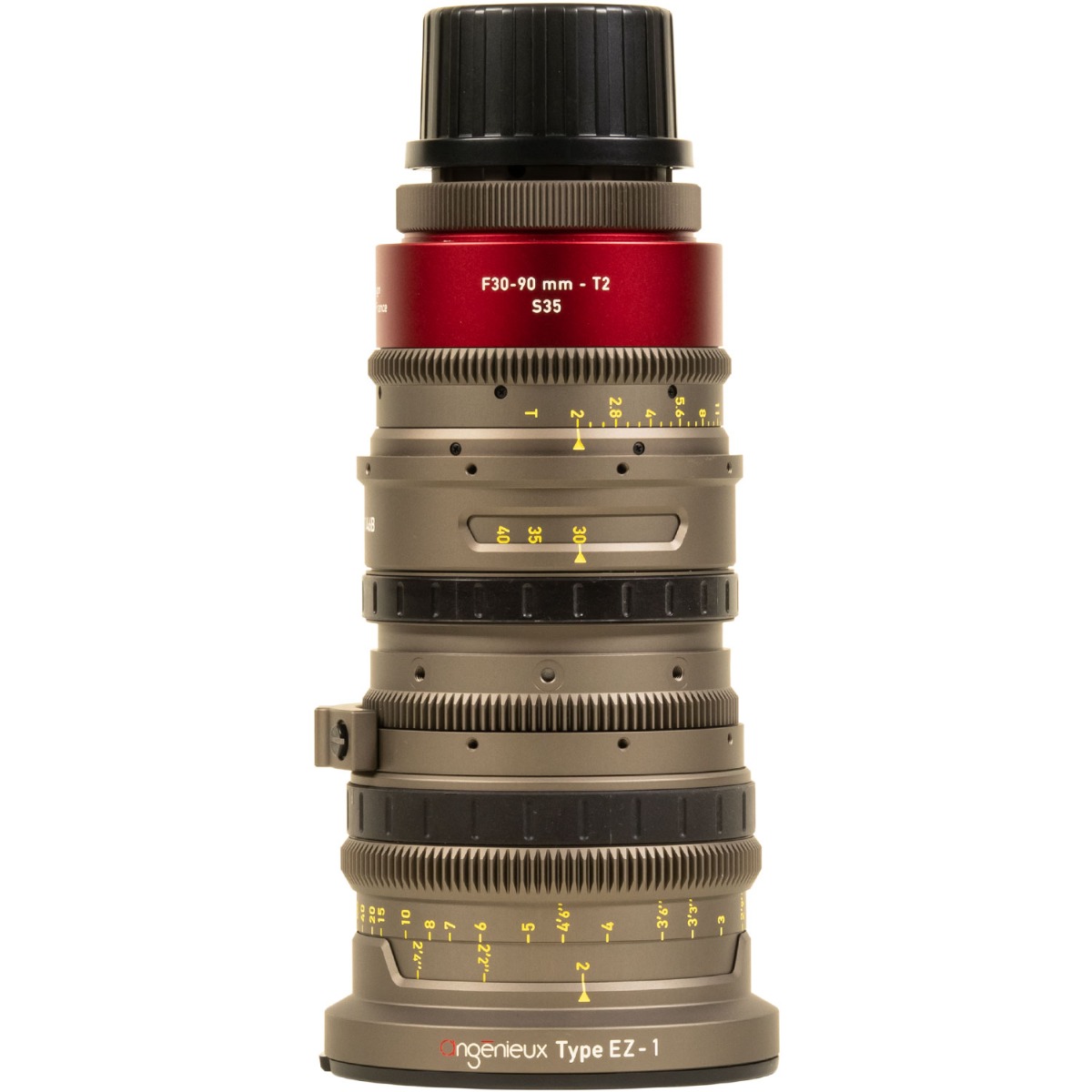

Angenieux EZ-1 (S35 30-90mm T2, FF 45-135mm T3)
OVERVIEW
Created to fill the wide gap between still photography and cinema lenses, the Angeniuex Type EZ Series features three versatile zoom lenses at an affordable price. For the first time, excellent image quality and flexibility is available to cinematographers, ENG shooters, broadcasters, and creators of all backgrounds.
Thanks to Angenieux’s innovative IRO (Interchangeable Rear Optics™) technology, the EZ-1 is compatible with Super 35 and Full Frame/Vista Vision cameras. In its native configuration, the EZ-1 is a Super 35 zoom lens, and features a 30-90mm focal length, and a fast T2 aperture. The EZ-1 is convertible to Full-Frame/Vista Vision by swapping the rear optical block (included). In the Full-Frame/Vista Vision configuration, the EZ-1 features a 45-135mm focal length and a T3 aperture.
The EZ-1 ships with a PL mount, alternative mounts are sold separately. Availeble mounts: Sony E Mount, Canon EF Mount, and Canon RF Mount.
Discover how the Type EZ Series captures skin tones.
FLEXIBLE DESIGN
Multi-Image Format
Super 35, Full-Frame/Vista Vision
Thanks to Angenieux's IRO technology, the EZ-1 is convertible between Super 35 and Full-Frame/Vista Vision. The EZ-1 ships in the S35 configuration. The FF/VV rear optical block is included.
Interchangeable Mount
PL, E, EF, RF Mount
The EZ-1 ships with a cinema standard PL mount. Sony E Mount, Canon EF Mount, and Canon RF Mounts are sold separately. All mounts are easy to install and remove via screw-on/screw-off construction.
Interchangeable Focus Scale
Feet/Meters
The EZ-1 ships with a Feet Focus Scale. A Metric Focus Scale is available separately. Contact our Service Department to purchase and install a metric scale, we're here to help.
SUPER 35 AND LARGE FORMAT
Learn how the Angenieux EZ-1 is convertible between Super 35 and Full-Frame/Vista Vision.
INTERCHANGEABLE LENS MOUNT
Learn how the Angenieux EZ-1 is convertible between PL, E, EF, and RF mounts.
KEY FEATURES
- Convertible between Super 35 and Full-Frame/Vista Vision
- S35: 30-90mm T2 (30mm image circle)
- FF/VV: 45-135mm T3 (46mm image circle)
- PL Mount. E, EF, and RF mounts sold separately
- Threaded 114mm front diameter
- 2ft Close Focus
- No Ramping - Consistent aperture across the entire zoom range
- Internal zoom and focus for a consistent length
- Precise and ergonomic focus ring with scale rotation of 300 degrees
- Luminescent FTZ markings, easy reading in the dark
- Lightweight construction (4.7 lbs)
SHOT ON TYPE EZ SERIES
TECHNICAL SPECS
Attribute | Value |
---|---|
Sensor Coverage | Super 35, Full-Frame/Vista Vision |
Image Circle | S35: Up to 30mm FF/VV: Up to 46mm |
Lens Mount | PL Mount E, EF, and RF mounts sold separately |
Focal Length | S35: 30-90mm FF/VV: 45-135mm |
Maximum Aperture | S35: T2 FF/VV: T3 |
Zoom Ratio | 3x |
Close Focus | 24 in / 0.6 m |
Front Diameter | 114 mm / 4.5 in |
Filter Thread | Yes |
Metadata | No |
Focus Scale | Feet (Imperial) Interchangeable to Meters (Metric). Scale sold separately. |
Focus Rotation | 300° |
Internal Focus | Yes |
Internal Zoom | Yes |
Horizontal Field Of View | S35: 43.6° - 15.2° FF/VV : 45.6° - 15.9° |
Vertical Field Of View | S35: 25.1° - 8.8° FF/VV : 30.8° - 10.7° |
Angenieux Collection | Type EZ Series |
Weight | 4.7 lbs / 2.13 kg |
Length | 8.9 in / 226 mm |
